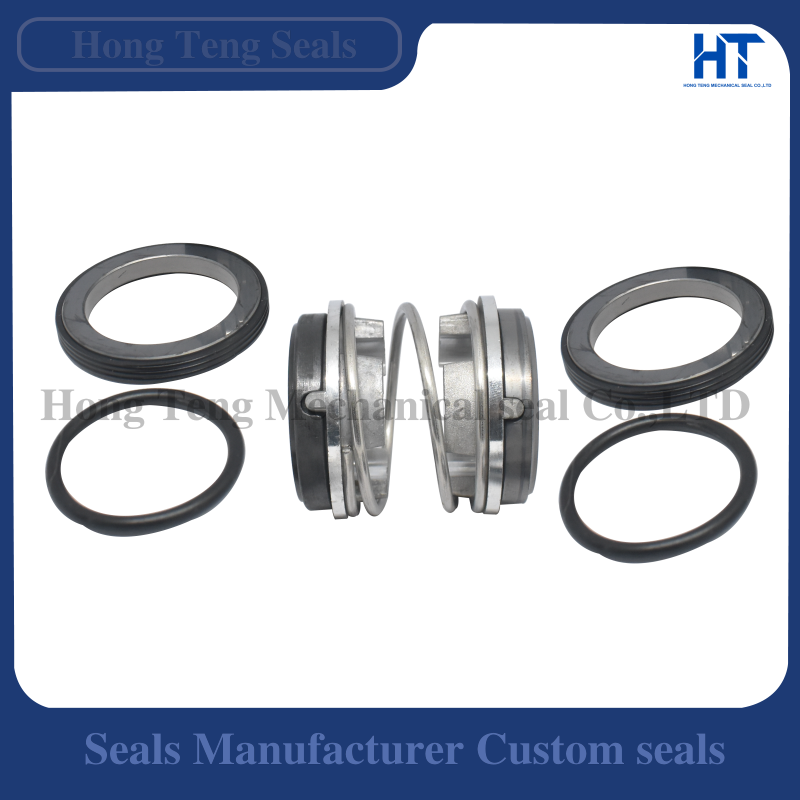

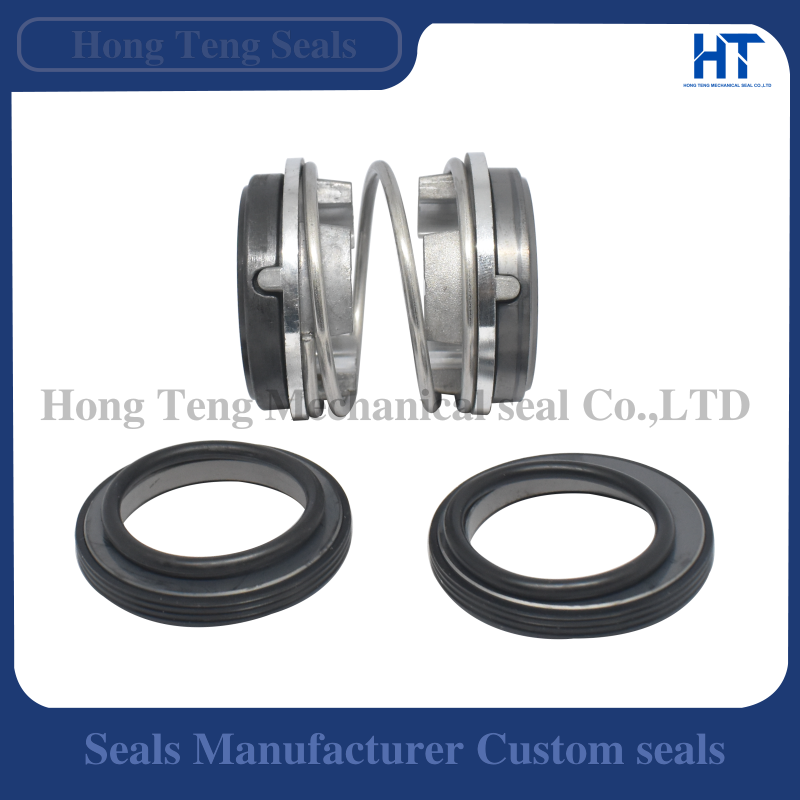

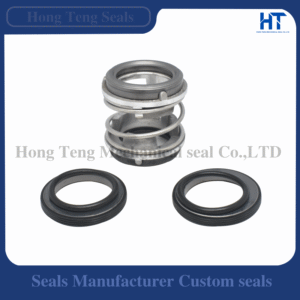

208T Water Pump Single Spring Mechanical Seal SGS Shaft Hole

Place fo Orgin	China
Brand	Hong Teng
Certification	ISO SGS
Model	208T
MOQ	1/PCS
Delivery Time	10 days
Packing Details	*60mm60mm60mm*
Payment Terms	T/T Western Union MoneyGram

製品仕様

Name Mechanical seal Brand Hong Teng

_______________________________________________________________________________________________________________________________________

Origin China Model Name 208T

_______________________________________________________________________________________________________________________________________

Material CAR/SIC/TC/NBR

_______________________________________________________________________________________________________________________________________

Secondary Seal NBR VITON Metal SUS304

_______________________________________________________________________________________________________________________________________

Application Certificate ISO9001-2015

_______________________________________________________________________________________________________________________________________

Service OEM Customization Service

_______________________________________________________________________________________________________________________________________

Highlight 40mm spring mechanical seal, water pump single spring mechanical seal

_______________________________________________________________________________________________________________________________________

製品詳細

208T water Pump Singe Spring Mechanical Seal 17 20 25 30 35 40mm Shaft Hole

Mechanical Seal Type 208T 17 20 25 30 35 40 Water Pump Seal Mechanical Seal

Mechanical Seal Type 208T-17 20 25 30 35 40mm Submersible Pump Sewage Pump Water Pump Seal Mechanical Seal New Material SSIC SSIC TC TC NBR Manufacturer Excellent Quality Patented Technology Durable Mass Spot Fast Delivery

Description of Singe Spring Mechanical Seals.

Operating Limits:

Pressure: ≤1.2MPa
Speed: ≤10 m/s
Temperature: -30ºC~+200ºC

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Ring(nbr/Epdm/)
Spring and Retainer(Sus304)

用途

1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.

2. The maximum radial deviation of the installed mechanical seal shaft (sleeve) is 0.04mmThe axial movement value of the rotor shall not exceed 0.1mm.

3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.

4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.

5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.

6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.

7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
